VDS-4200

Drum Priming Rotation Unit

This medium-scale drum priming system is highly suitable for smaller commercial purposes with vegetable and field crop seeds. Drum priming is particularly suitable for bulk seed crops such as carrot, onion, and spinach, as well as other seeds that can tolerate gentle mechanical movement.

After seed priming, seeds generally germinate faster and more uniformly. Before starting a drum priming process, it is important to determine the initial moisture content (MC) of the seed accurately.

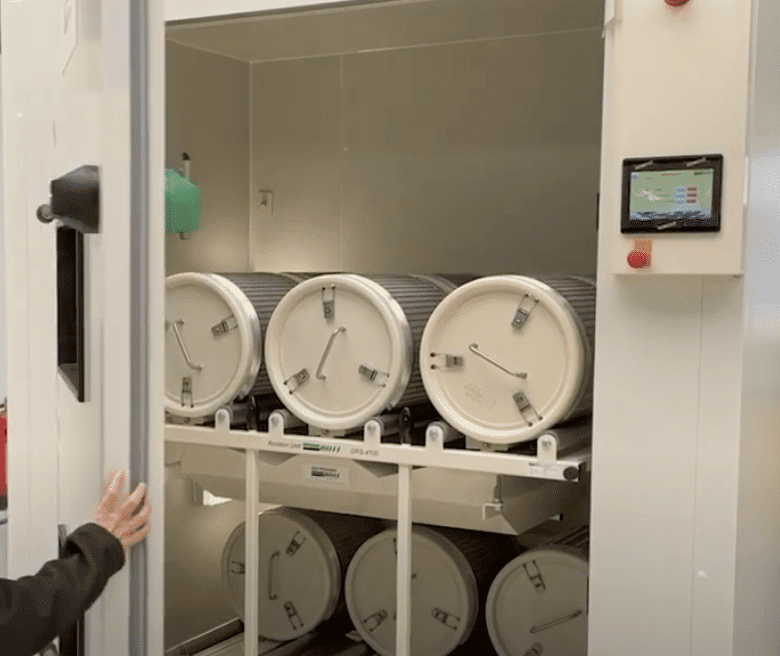

This research unit can accommodate up to 12 drums, each with a capacity of 42 litres.

The seeds are placed inside the drums and slowly rotated (agitated) during the process. A controlled amount of water is then dosed into the drum to initiate the seed's metabolic activity. Moisture uptake must be carefully controlled so that the seeds reach the desired moisture level without allowing the radicle to emerge. Different crops and varieties require different hydration levels and treatment times.

To maintain the optimal temperature during the priming process, the system should be placed in a temperature-controlled room. An adequate supply of air (oxygen) must also be provided to the seeds during priming.

To monitor moisture uptake and determine the increase in seed weight during the process, samples can be weighed separately using a precision weighing scale.

During priming, processes associated with germination become activated. Enzymes are produced or activated, cell membranes are repaired, respiration increases, and other biochemical processes prepare the seed for germination. The key objective is to stop the process before the seed reaches the point of radicle emergence. Priming processes of carrot can take between 12 and hours and 2 days and onion can take between 1 and 3 days.

After priming, the seeds need to be dried using a separate drying machine. This is a crucial step in maintaining seed quality. During drying, the seed's biological clock is temporarily paused at the optimal stage: the internal metabolic preparation is largely complete, while the radicle has not yet emerged through the seed coat.

We can provide drying equipment for this important subsequent processing step.

If you want to improve seed lots and achieve faster and more uniform seedling emergence, seed priming is an effective solution. We can provide the complete range of equipment required for the process, although priming protocols and recipes are not included.

Product group, process:
Priming, Seed Drum Priming

Specifications

Capacity: 12 drums of 42 litres
Which seed station: Processing
Operator control level: Manual
Method: Drum priming of seeds
Number of drum positions: 12
