DBM-4500

Cabinet Box Drying System

This dryer is specifically designed for drying multiple large seed lots in individual cabinets using dehumidified air.  A central water-based heat-pump system provides conditioned air to modular expendable individual cabinets. The dryer can be used for all kind of seeds like carrot, squash or brassica's after a wet process, like hot water, disinfecting, priming or pelleting.

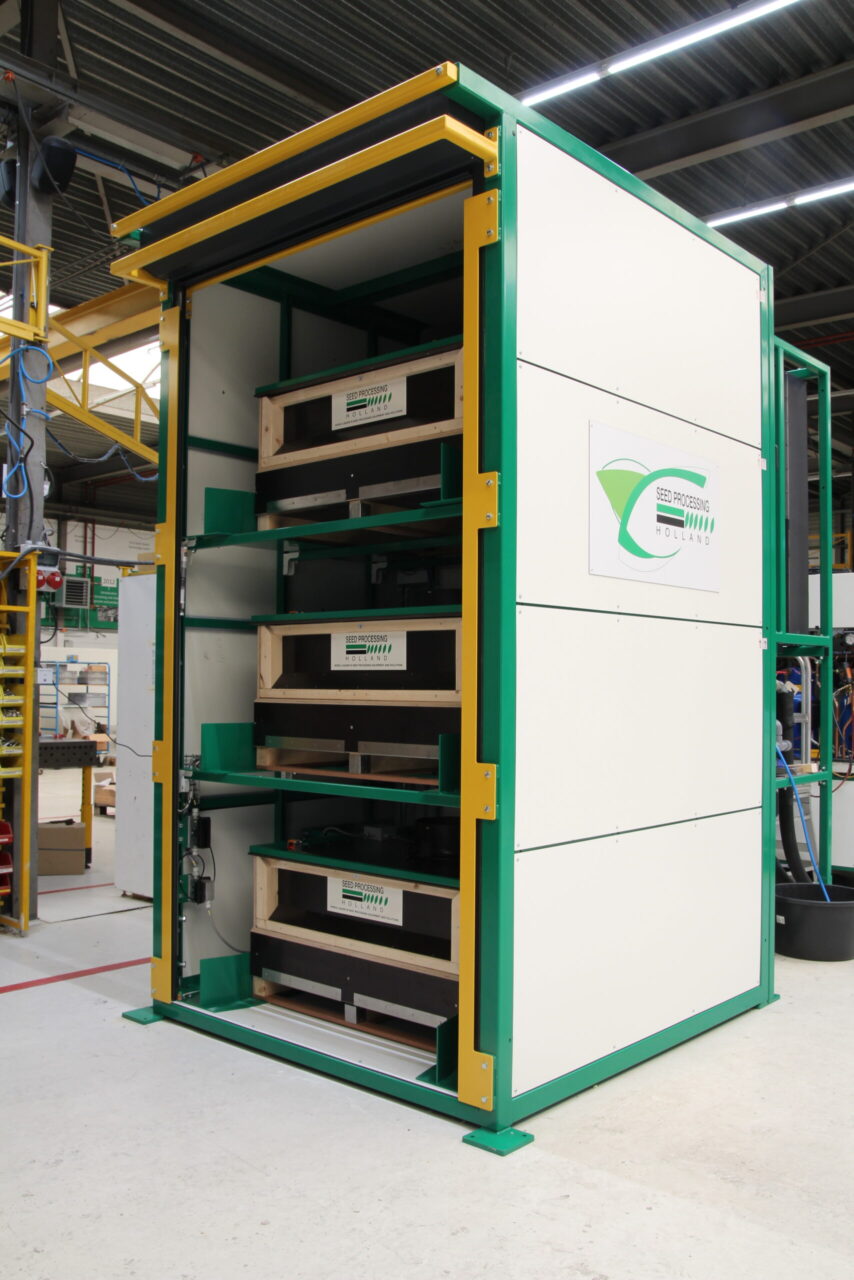

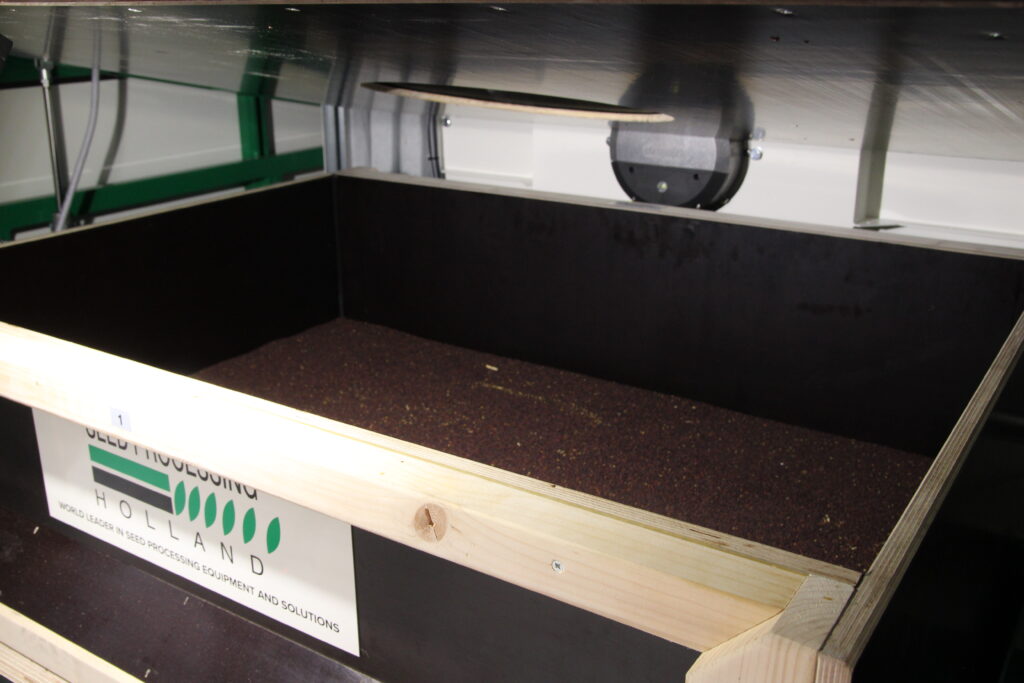

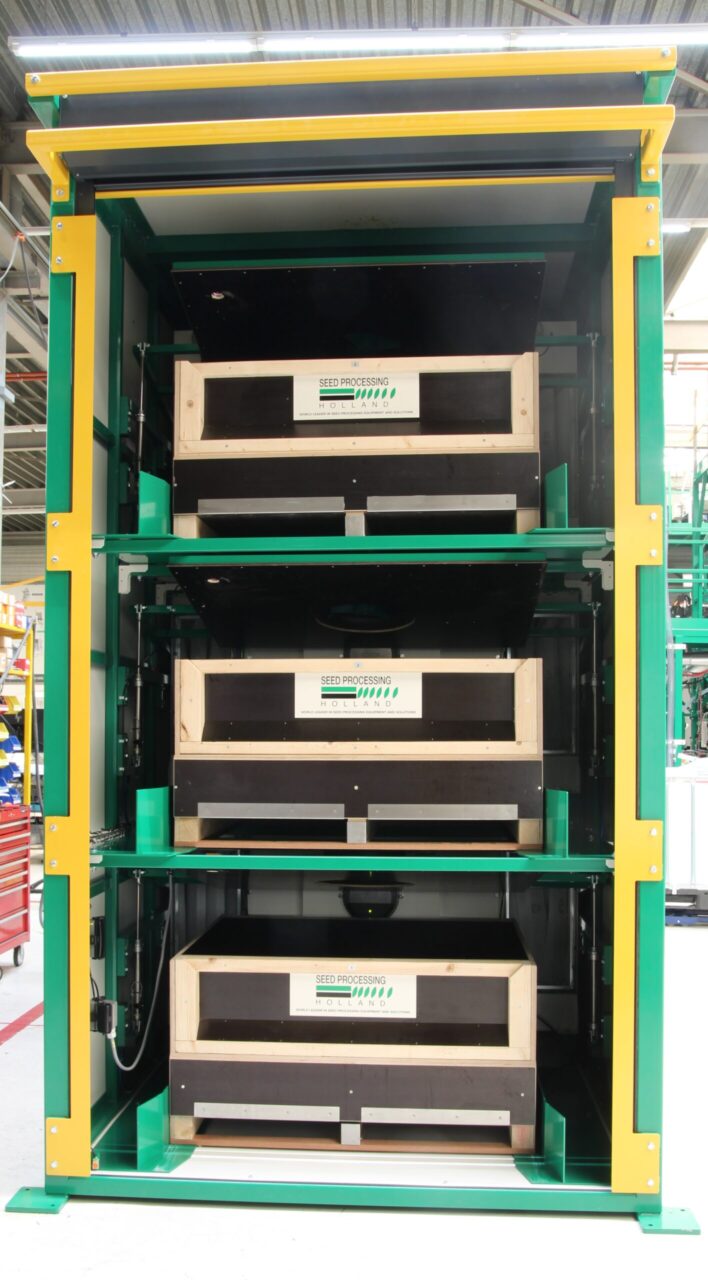

The insulated cabinet allows flexible drying configurations: seeds can be dried static air flow in boxes or using fluidized air flow in boxes. Multiple boxes can be placed inside one cabinet.

Within each cabinet, both drying temperature and air humidity are precisely controlled. This ensures a fully controlled drying process that is independent of ambient weather conditions for each cabinet, seeds can be dried depending after which wet process within 2-14 hours to an absolute moisture content (MC) of 6-7%. By using reproducible drying programs, seeds can be consistently dried to optimal storage and shipping conditions, helping to preserve their quality.

Process control is achieved by monitoring air temperature both below and above the seed bed. In addition, air humidity above the seed bed is continuously measured to ensure drying consistency and process stability. Ventilation speed is also continuously adjustable, allowing optimization of airflow conditions.

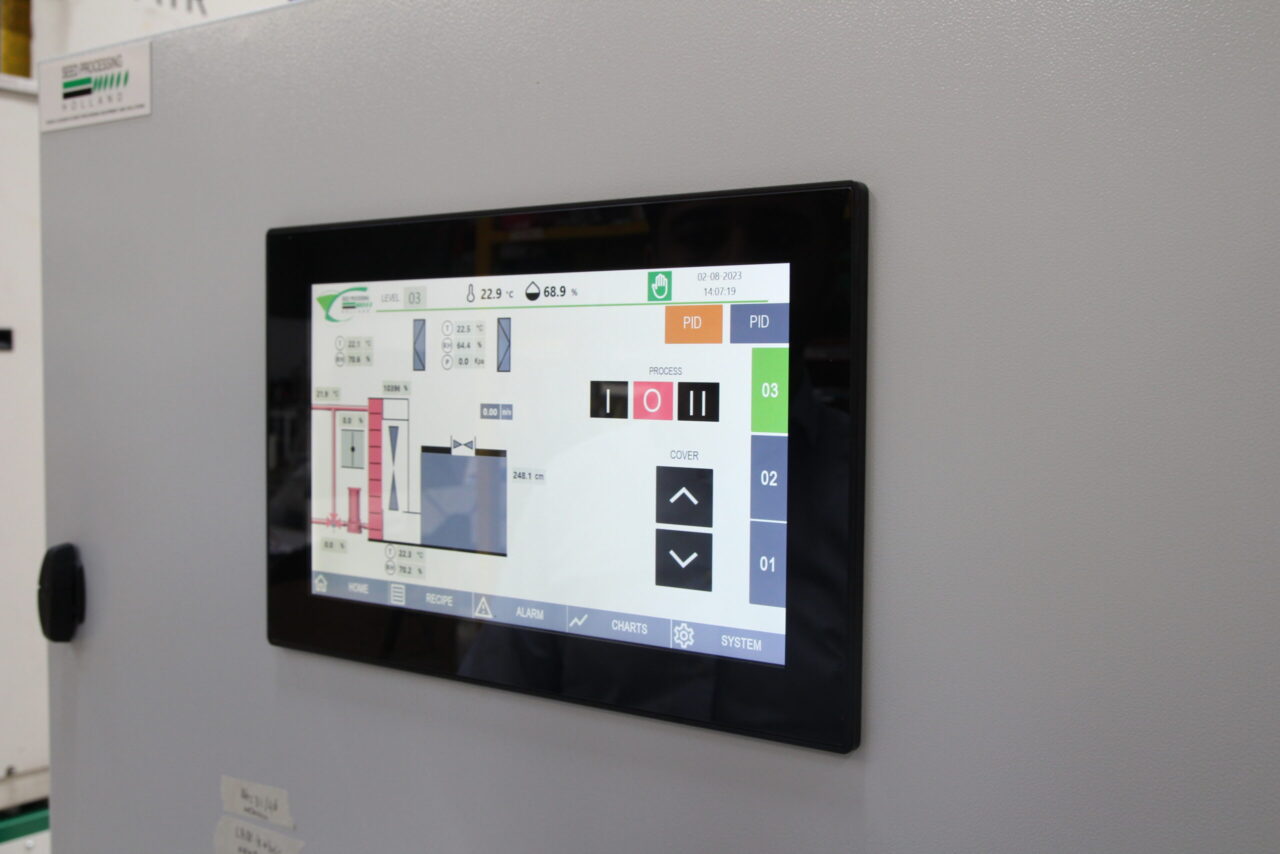

The system is operated via a central HMI, which enables users to set and manage key operating parameters easily.

Product group, process:
Conditioned Seed Box Dryer, Drying

Specifications

Capacity: Max. 4 drying boxes - 600 kg seed/pellets
Which seed station: Production, Processing
Operator control level: Automated

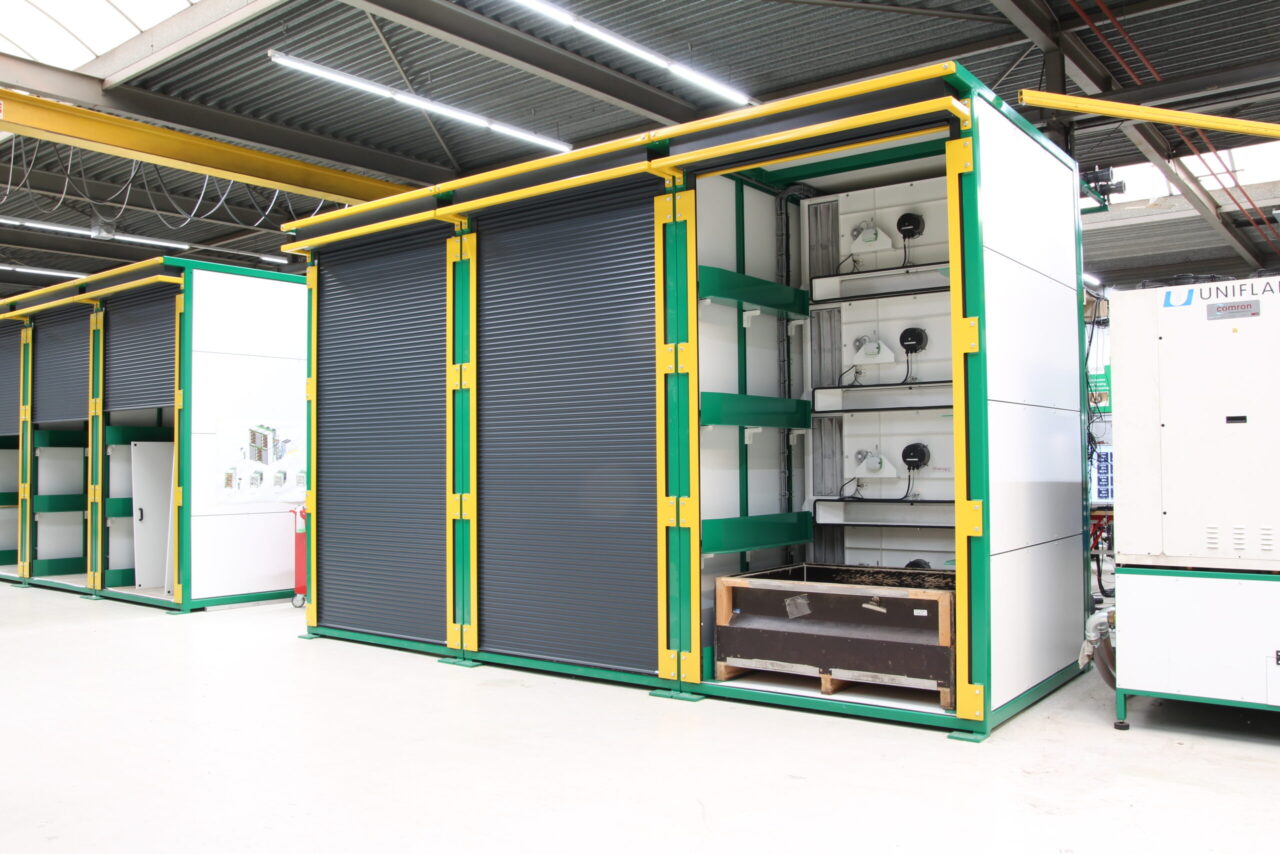

Number of cabinets: Modulair expendable; capacity depending on project scope
Number drying positions: 1-4 drying boxes per cabinet
Dehumidification Capacity: 24 litres/h per cabinet
Dehumidification Technology: Heat pump – water based – heat recovery
