DBM-SP02

Conditioned Bulk Box Dryer

This conditioned seed box dryer is designed for drying bulk seed lots and for processing large volumes of plant material (such as umbels, pods, and ears) during the seed maturation phase prior to threshing. It is suitable for a wide range of seed species and operates using dehumidified, conditioned air circulated through stacked drying boxes.

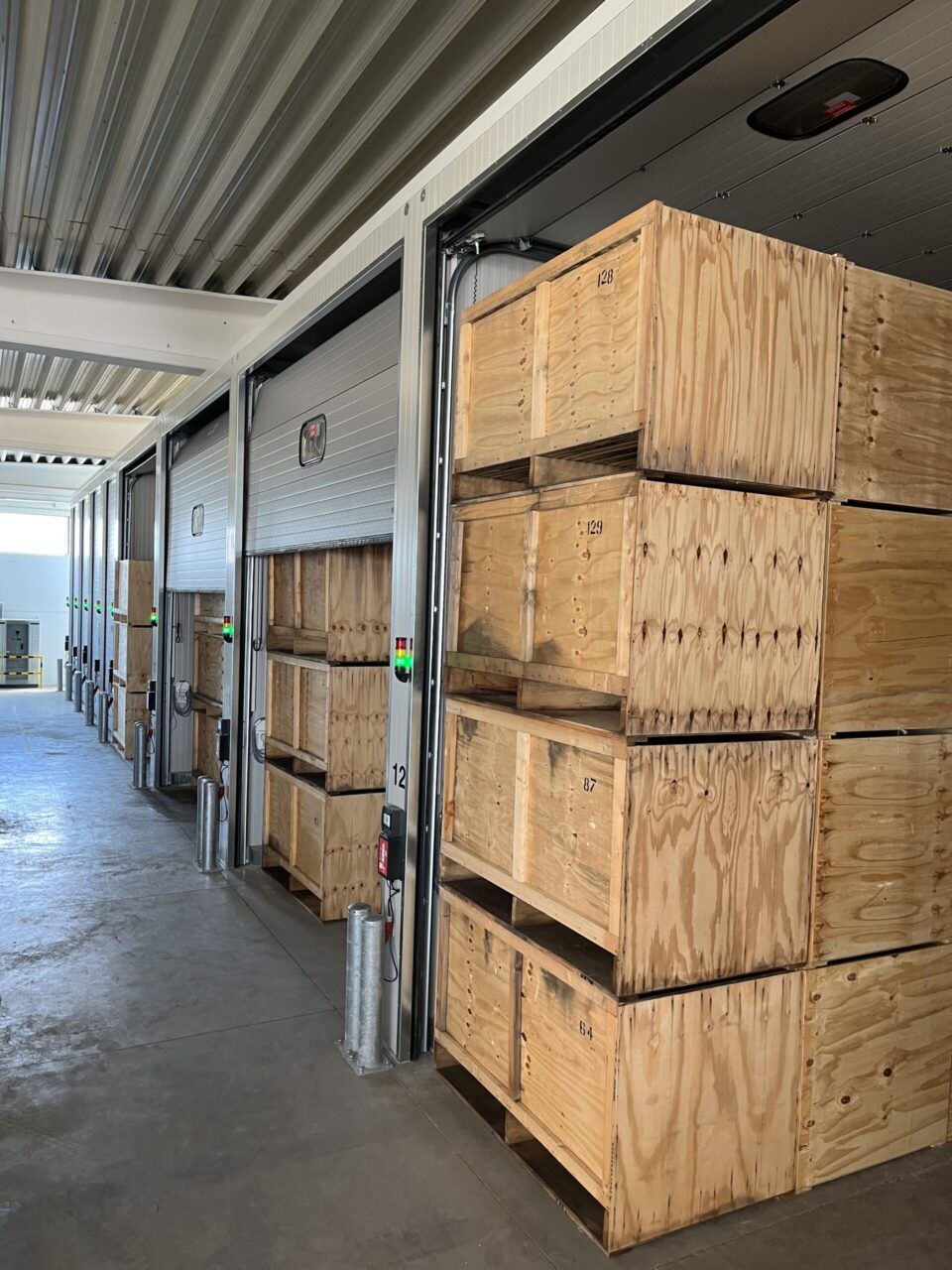

The system consists of multiple insulated cabinets, each equipped with an air handling unit that filters, dehumidifies, heats, and circulates air in a closed-loop system. Conditioned air is evenly distributed through perforated, mesh-bottom drying boxes arranged in a stacked configuration, providing a total capacity of 44 or 88 boxes per cabinet. Using multiple cabinets box capacities of 1000 boxes can be achieved.

Once the cabinet is closed,  air is continuously recirculated through the system, ensuring that all product layers are exposed to uniform temperature and relative humidity conditions throughout the drying cycle.

Both drying temperature and air humidity are precisely regulated within the cabinet using water driven heat-pump technology, allowing a fully controlled drying process that is independent of external environmental conditions. Depending on initial moisture content and product type, seeds or plant material can typically be dried to a final moisture content of 6–7% within 24 hours up to three weeks. The process duration can be flexibly adjusted to meet specific requirements.

The use of standardized and reproducible drying programs ensures consistent and repeatable results, supporting high and uniform seed quality for storage, processing, and transport.

Process control is achieved through continuous monitoring of air temperature below and above the seed layer, as well as relative humidity above the product bed. This ensures process stability and uniform drying performance across all boxes. Airflow velocity is fully adjustable, enabling optimization for different seed types, product loads, and drying stages.

The system is operated via a central HMI (Touch screen), which allows users to intuitively set, monitor, and manage all key process parameters.

Product group, process:
Conditioned Seed Box Dryer, Drying

Specifications

Capacity: Max. 1.000 drying boxes - 150.000 kg seed - 1600 m3 plant material
Which seed station: Production, Processing
Operator control level: Automated
Number of individual drying positions: up-to 1000 pcs of drying boxes
Dehumidification Capacity: ± 200 litres/h all depending on project scope
Dehumidification Technology: Sustainable heat pump – water based – heat recovery
