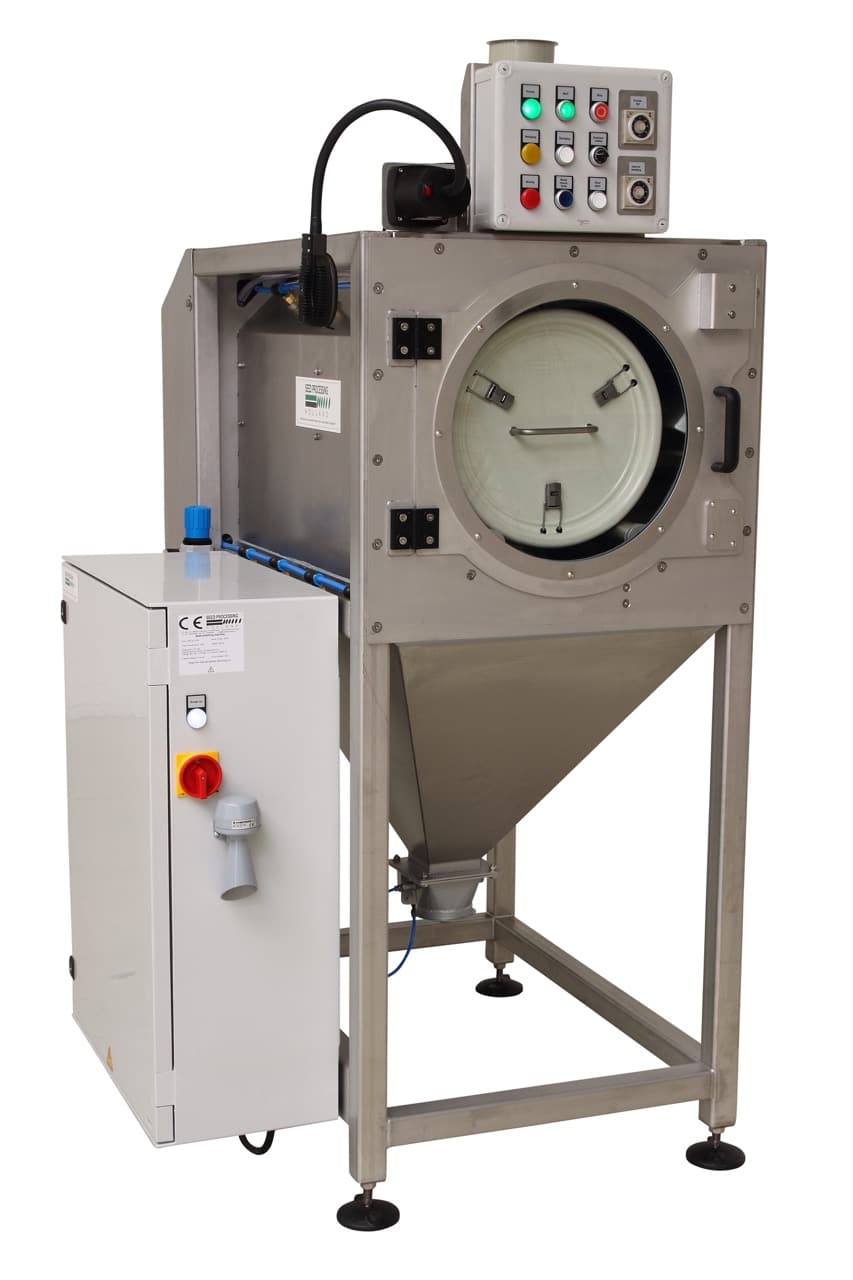

CPM-4220

Seed Polishing Machine

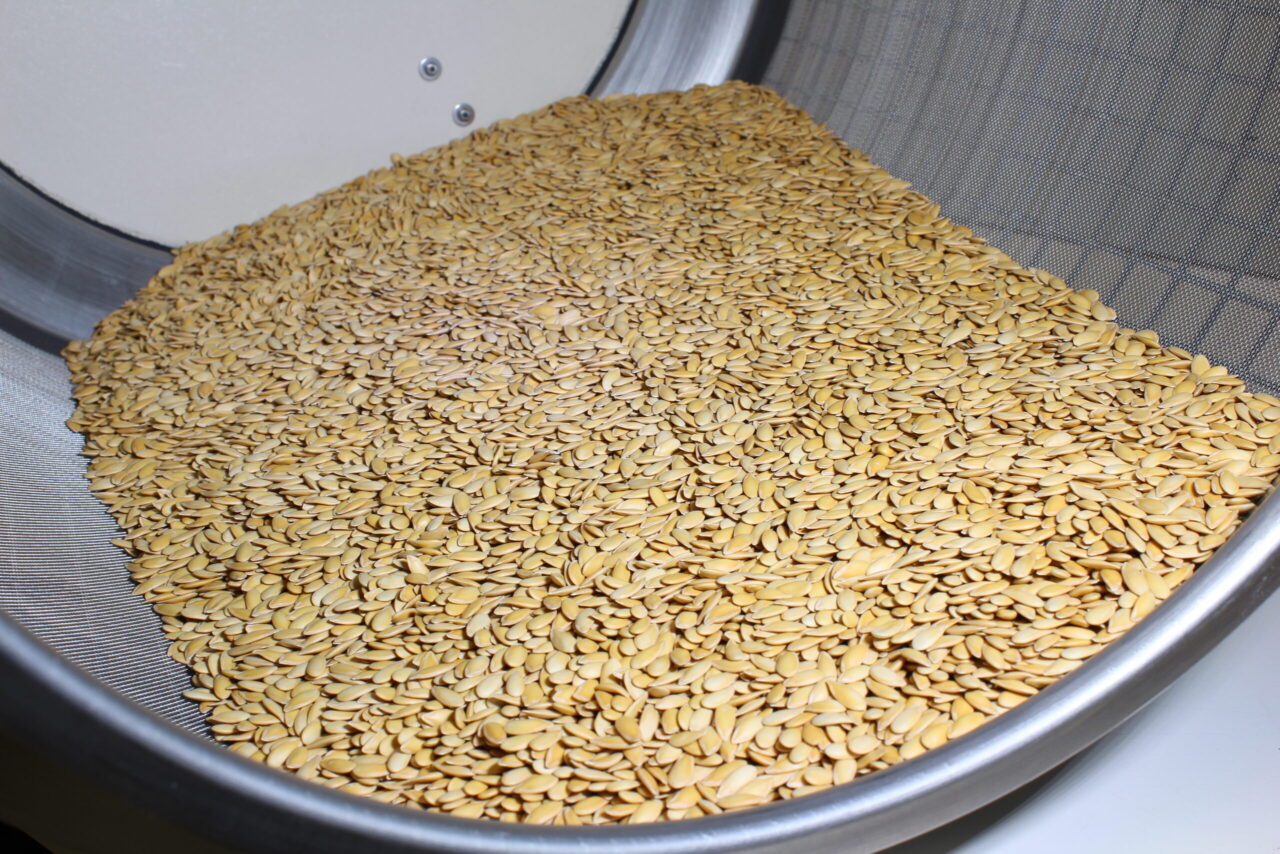

This unique seed polishing machine is using our removable perforated mesh seed drums ™ (that we also use in our seed drying systems)

This machine is designed to process raw (loose) seeds or seeds inside mesh bags in a batch process starting from 1 Kg. to 30 Kg. It has been specifically developed for handling smaller high value tomato or cucurbita seed volumes, making it ideal for commercial seed lots.

It effectively removes unwanted seed appendages and coatings, including:

  • Fuzzy hairs (trichomes or pappus) from seeds such as tomato.
  • The white "fleece" coat (membrane) surrounding cucumber, melon and squash seeds.

By removing these materials, the machine produces smooth, clean seeds that are easier to handle, further process, and sow. This polishing cycle is slow process and can take up-to 30-60 minutes per batch, depending on the seed type and the required treatment.

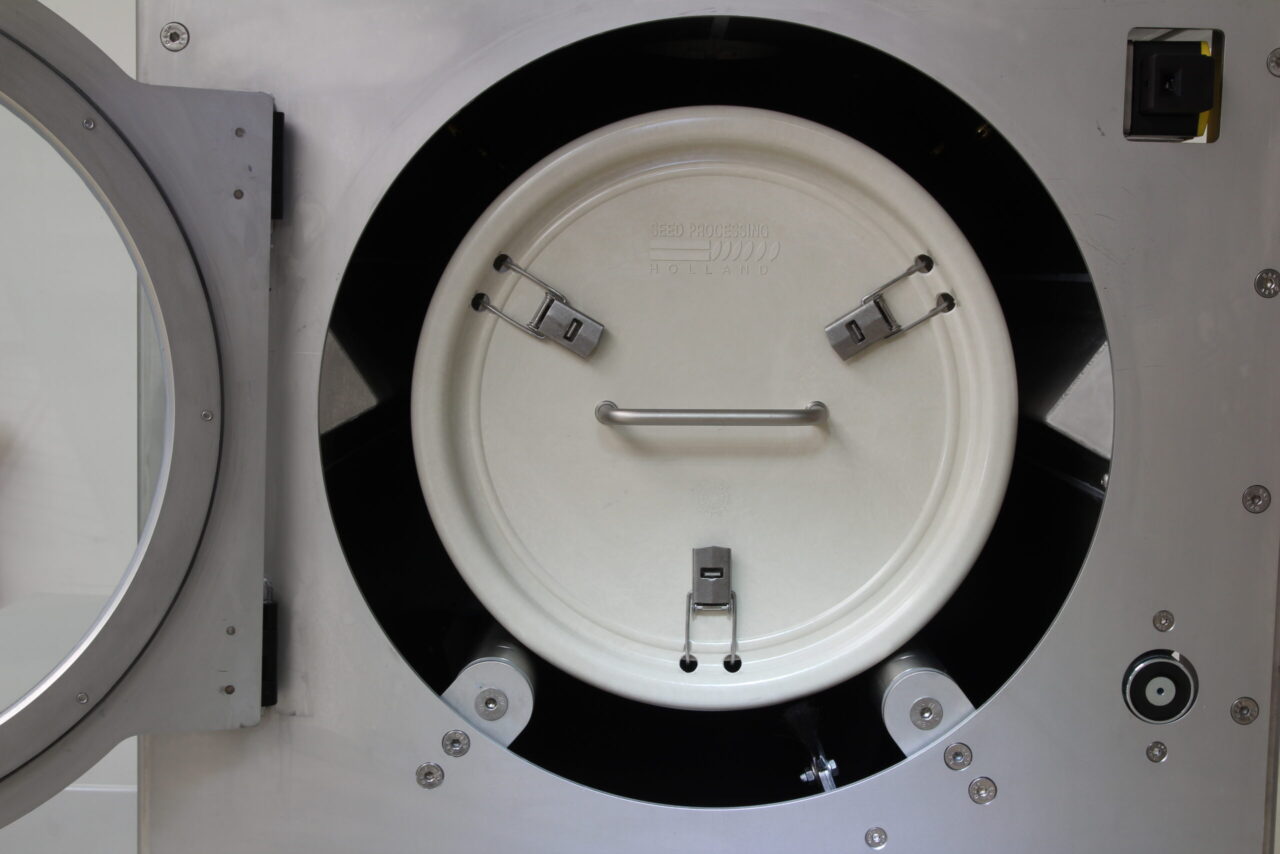

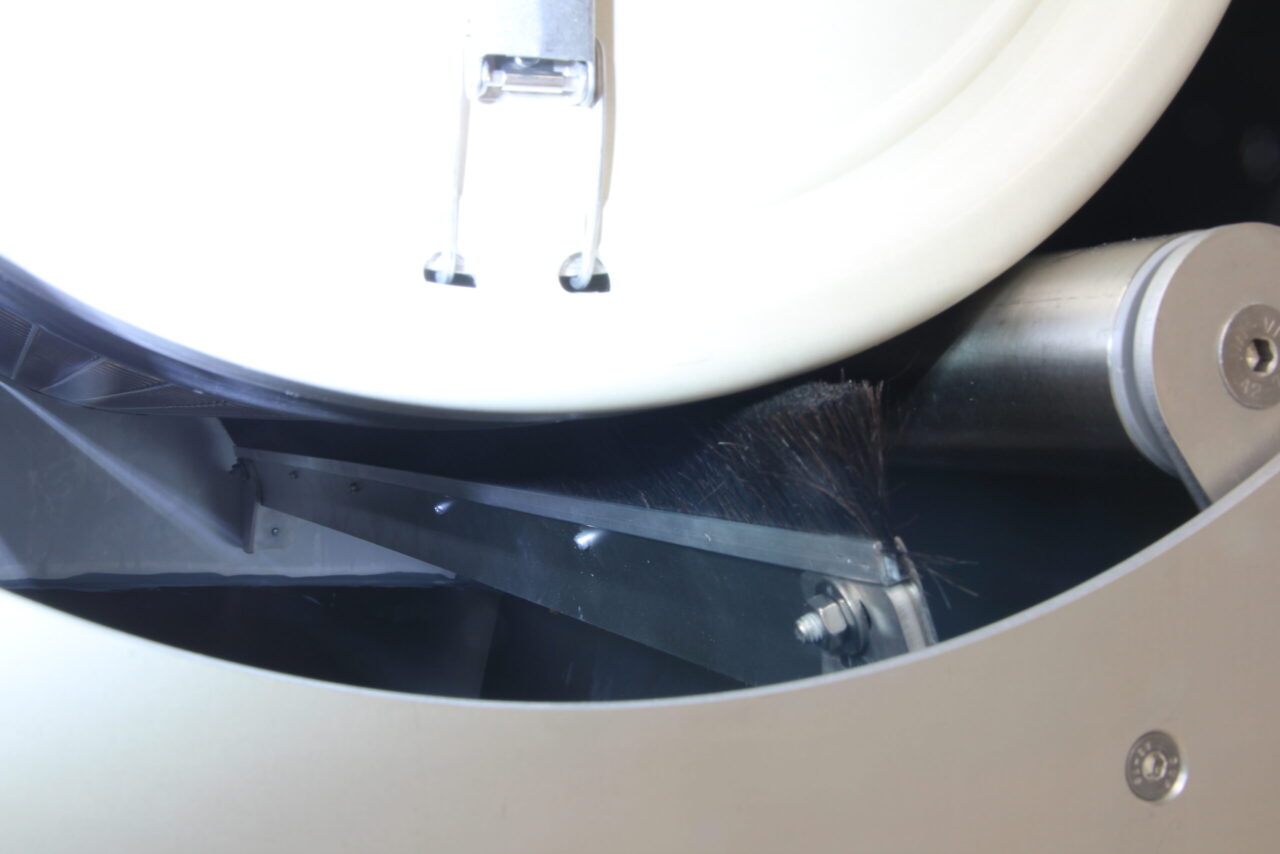

The system can place two seed drums, which can rotate in variable adjustable speed in an enclosed environment.  After the polishing process the inside of the system can be cleaned by activating air nozzles (Clean In Place) that start to spray in a certain pre-set interval cycle.  All dust is extracted when connected to your central dust exhaust system.

A special machine suitable for certain high valued seed crops when precision counts.



Product group, process:
Cleaning, Seed Polishing

Specifications

Capacity: 2 drums (30 kg total)
Which seed station: Foundation, Processing
Process type: Batch

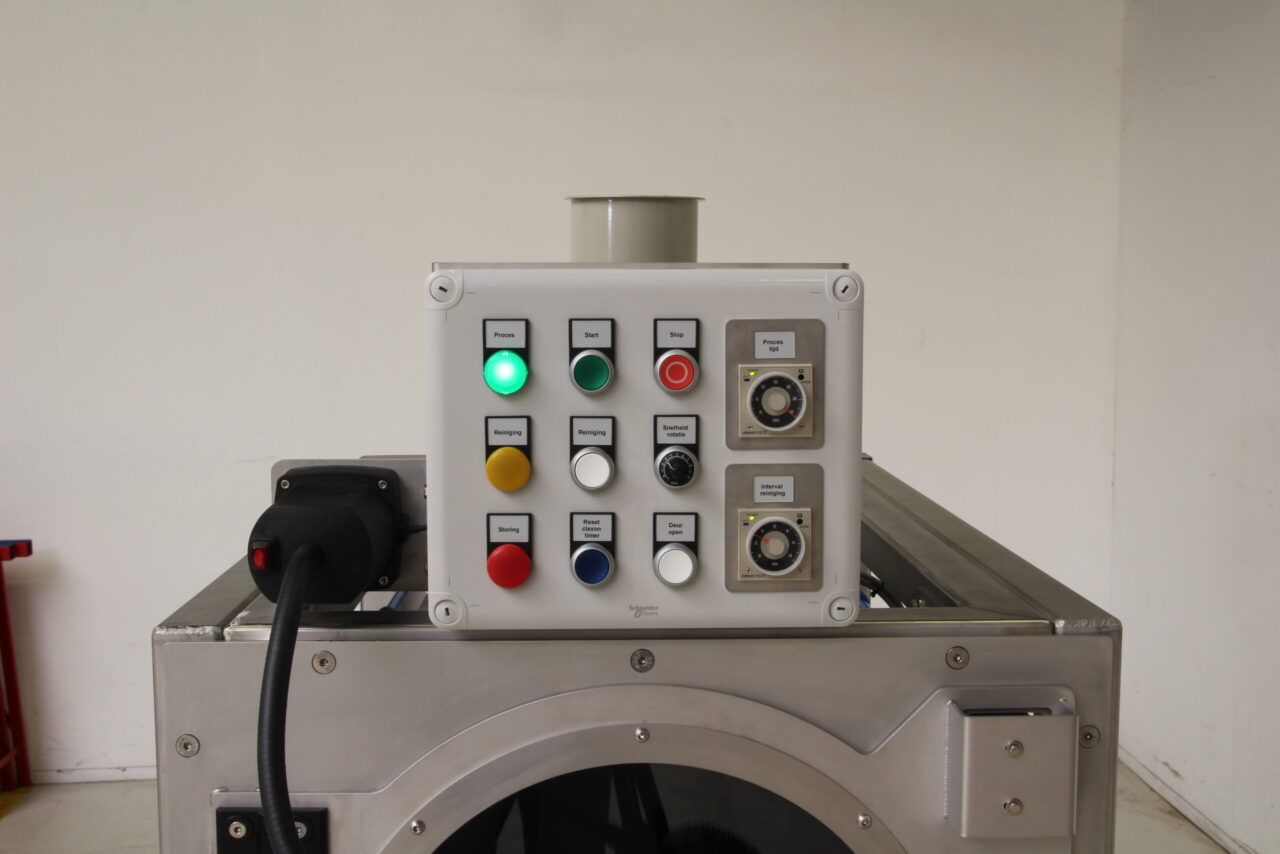

Operator control level: Automated
Method: Rotating drums with seeds inside bags
Number of fractions: 2
