CMM-4000

Magnetic Seed Separator

This specialized machine is designed for processing smaller seed lots and is used to separate defective or unwanted material from the prime seed lot. It is particularly effective for removing cucurbit seeds with “fish mouth” damage caused by incorrect seed extraction, pre-germinated seeds resulting from improper drying, cracked or damaged seed coats in crops such as brassicas and radish, as well as soil particles and weed seeds.

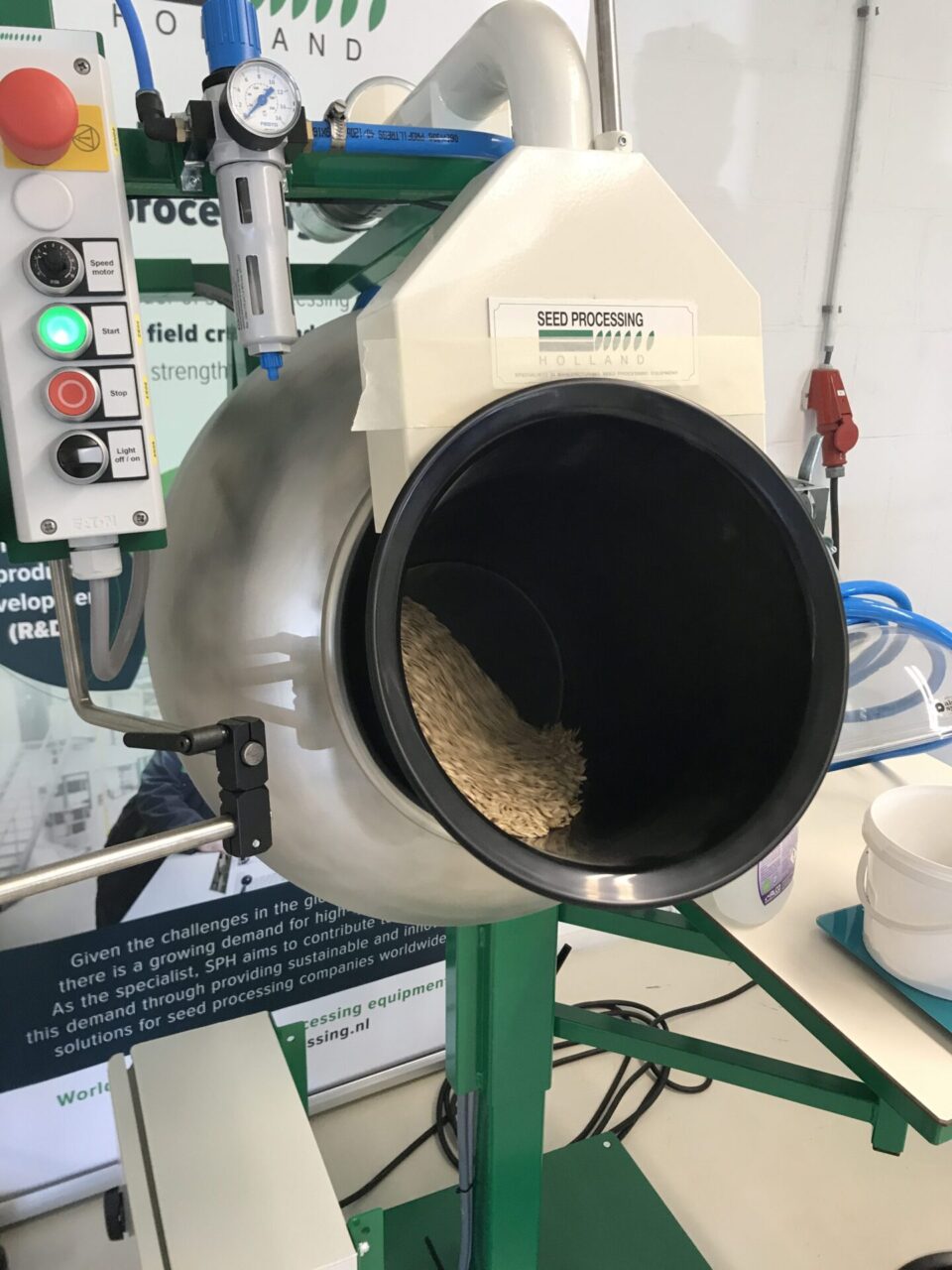

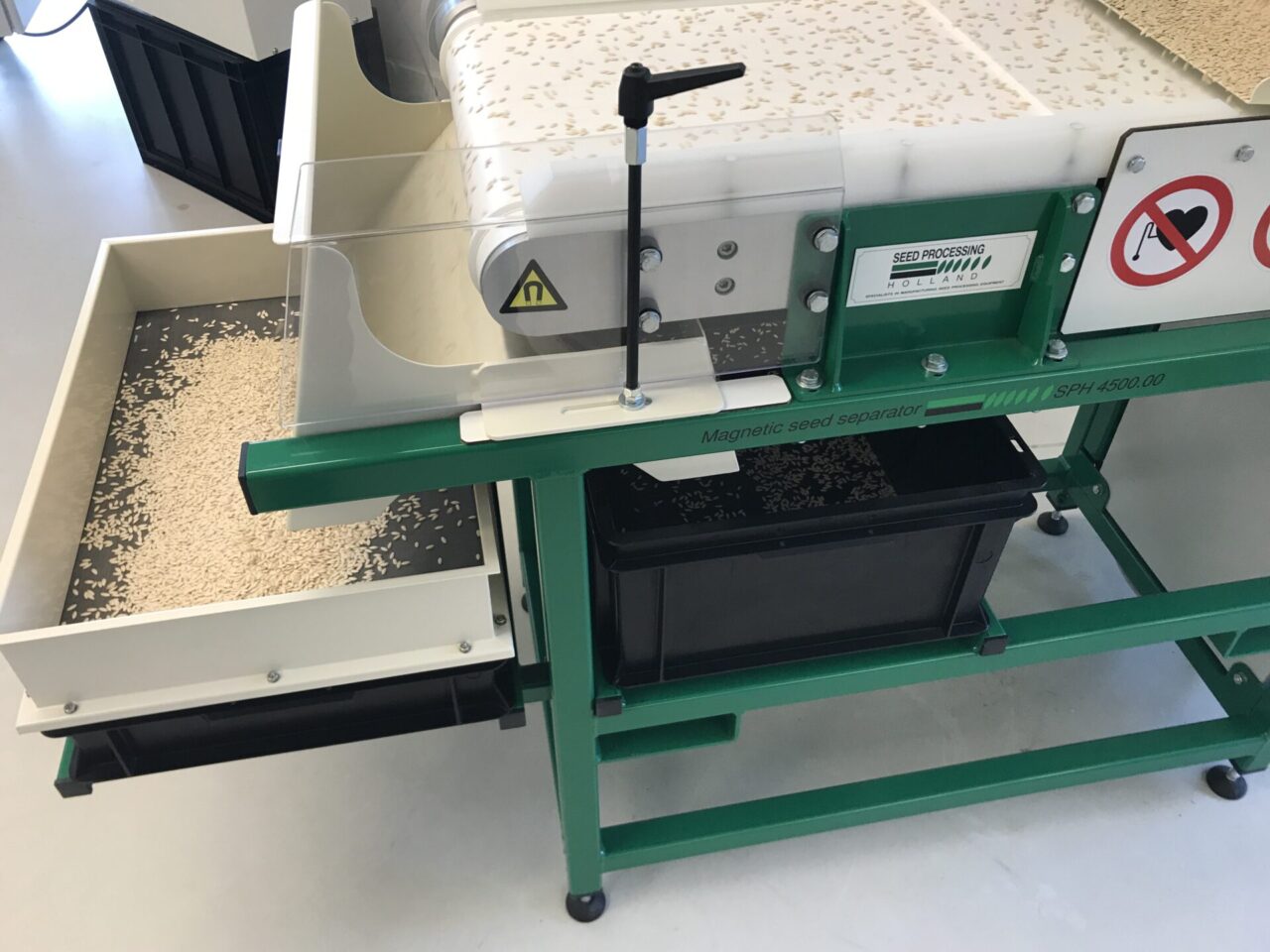

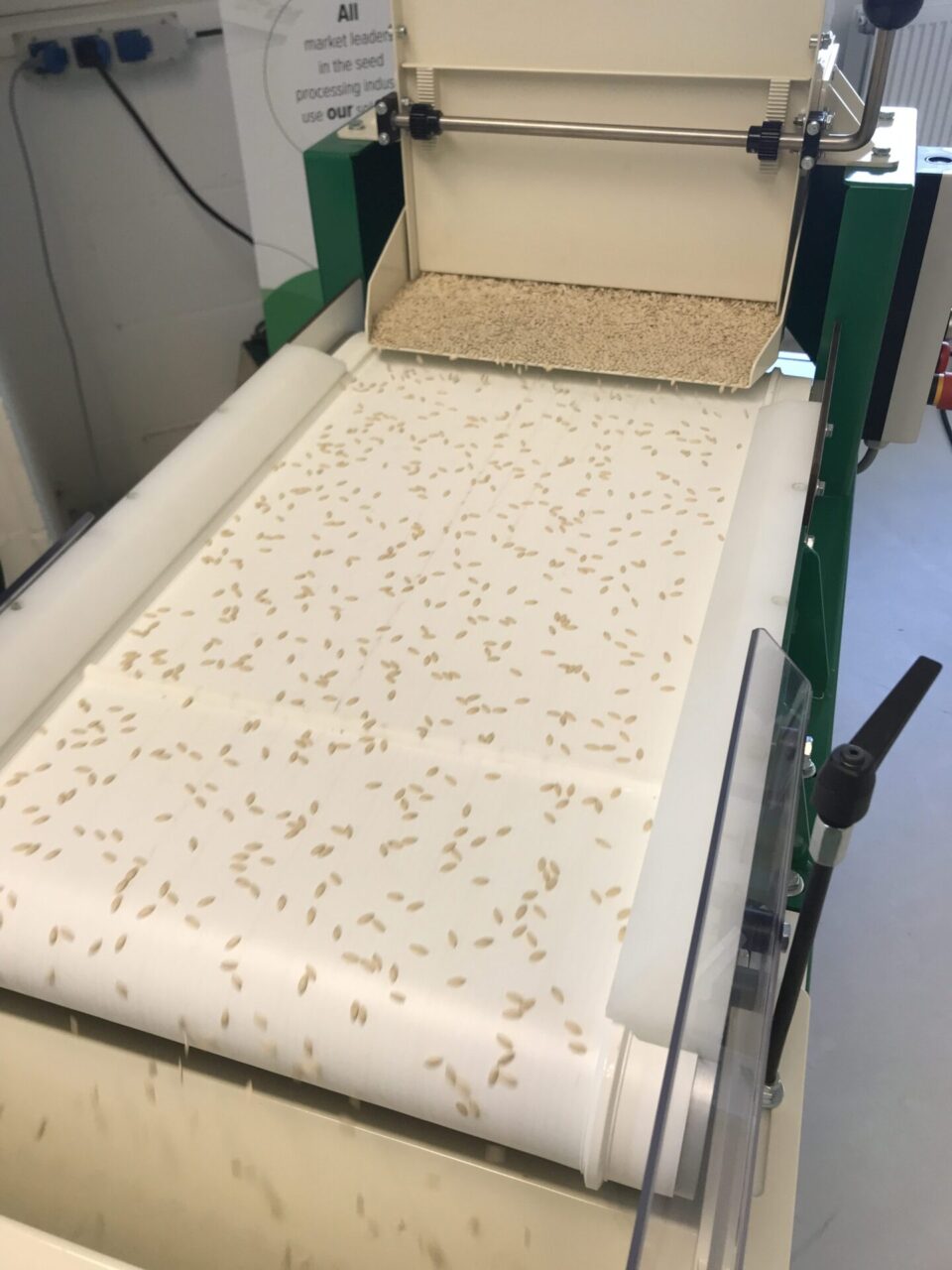

Before processing, the seeds are lightly imbibed by spraying them with water in a separate mixing device. Iron powder is then added, which adheres to inert material and damaged seeds. During feeding into the machine, a strong permanent magnet attracts the iron-coated particles, forcing them into a different separation path from the healthy seeds. This process effectively cleans and upgrades the seed lot.

Depending on the final moisture content after processing, the seeds may require a slight additional drying step.

Product group, process:
Cleaning, Magnetic Seed Separator

Specifications

Capacity: 40 – 200 kg/h
Which seed station: Processing
Process type: Continuous
Operator control level: Automated
Number of fractions: 2
