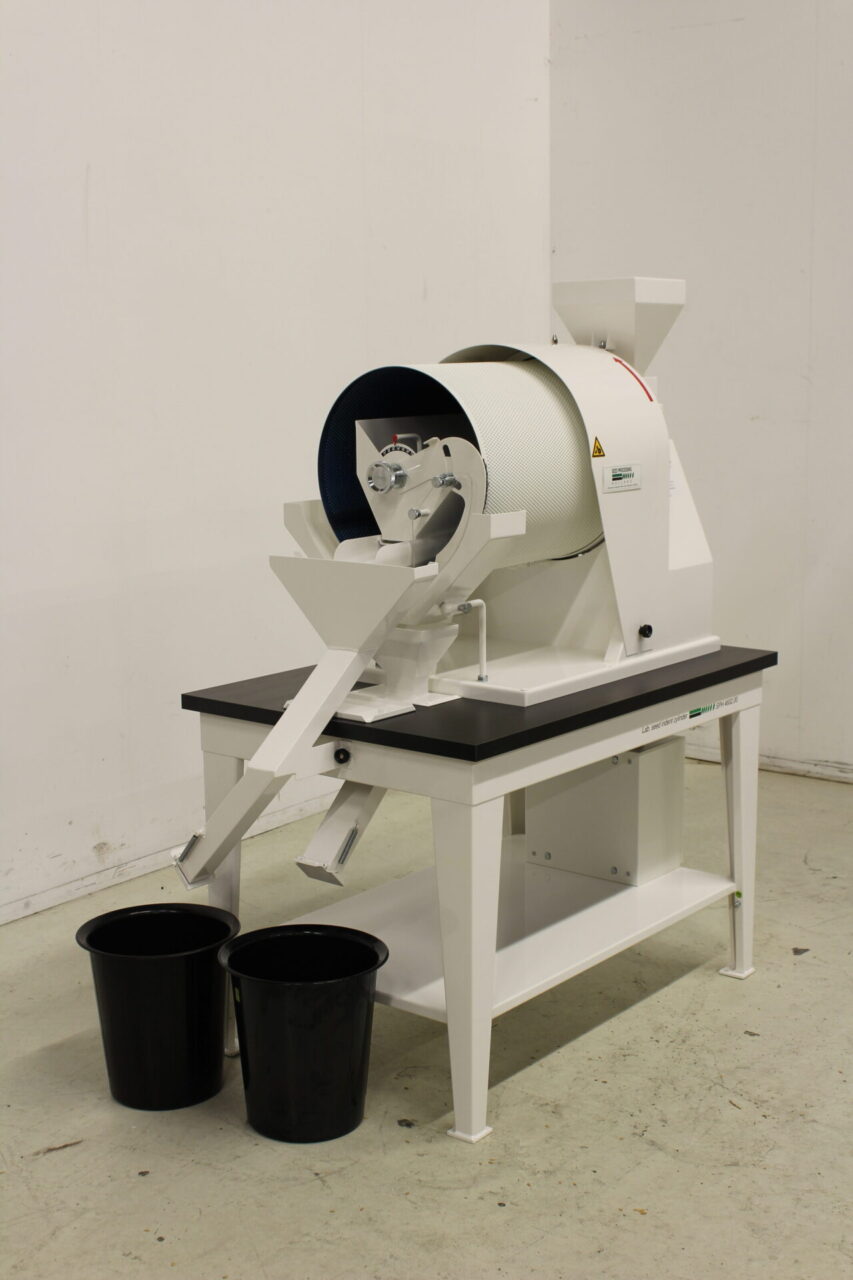

This laboratory indent cylinder is designed for separating small seed lots based on seed length, starting from lots between 2 – 30 Kg/h. It is an ideal solution for R&D departments, breeding stations, and stock seed processing, where accurate and repeatable length grading is essential. The machine is suitable for processing a wide range of flower, herb, tree, vegetable, and field crop (row crop) seeds.

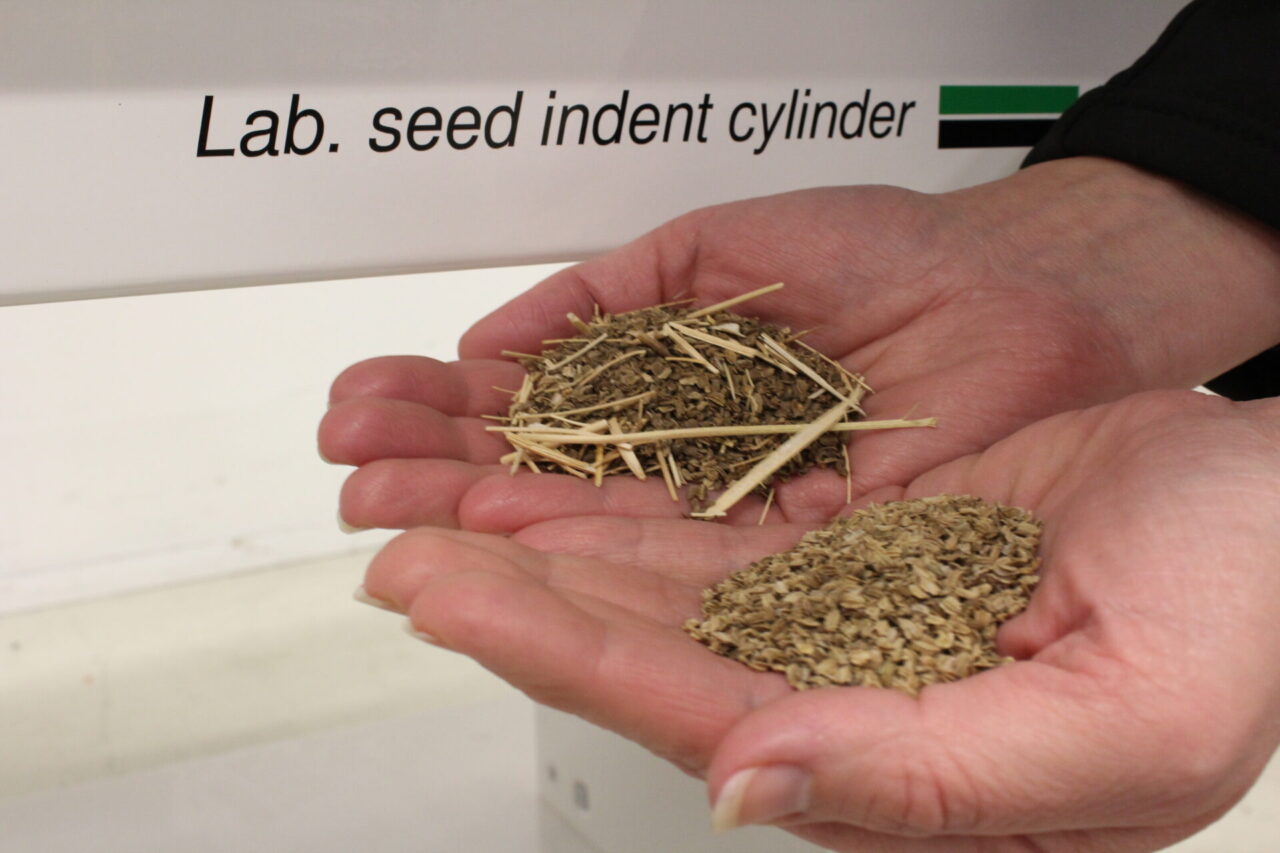

Indent cylinder technology is particularly effective for elongated seeds. Typical applications include sizing lettuce, sunflower, marigold, and melon seeds, as well as removing unwanted stem fragments and flower heads from carrot, sugar beet, and cereal seed lots.

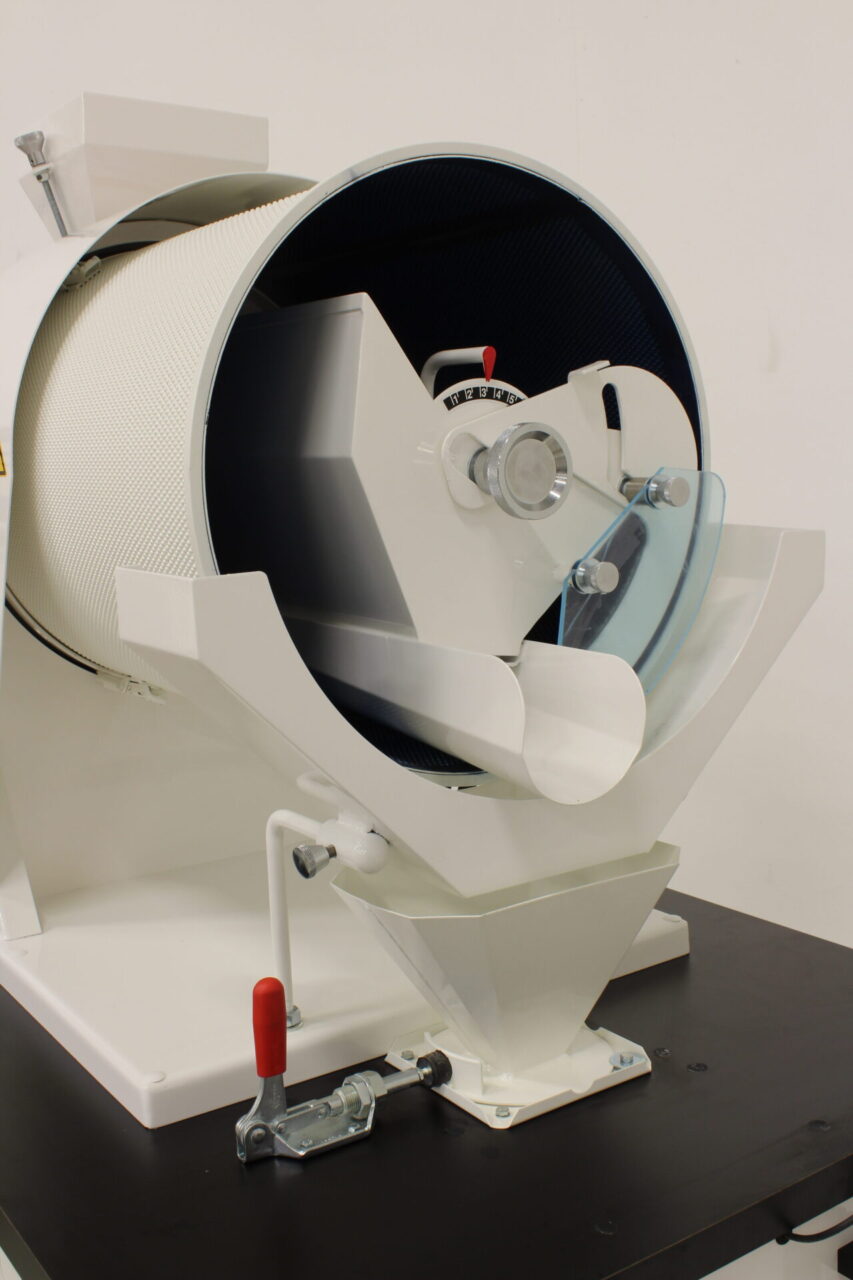

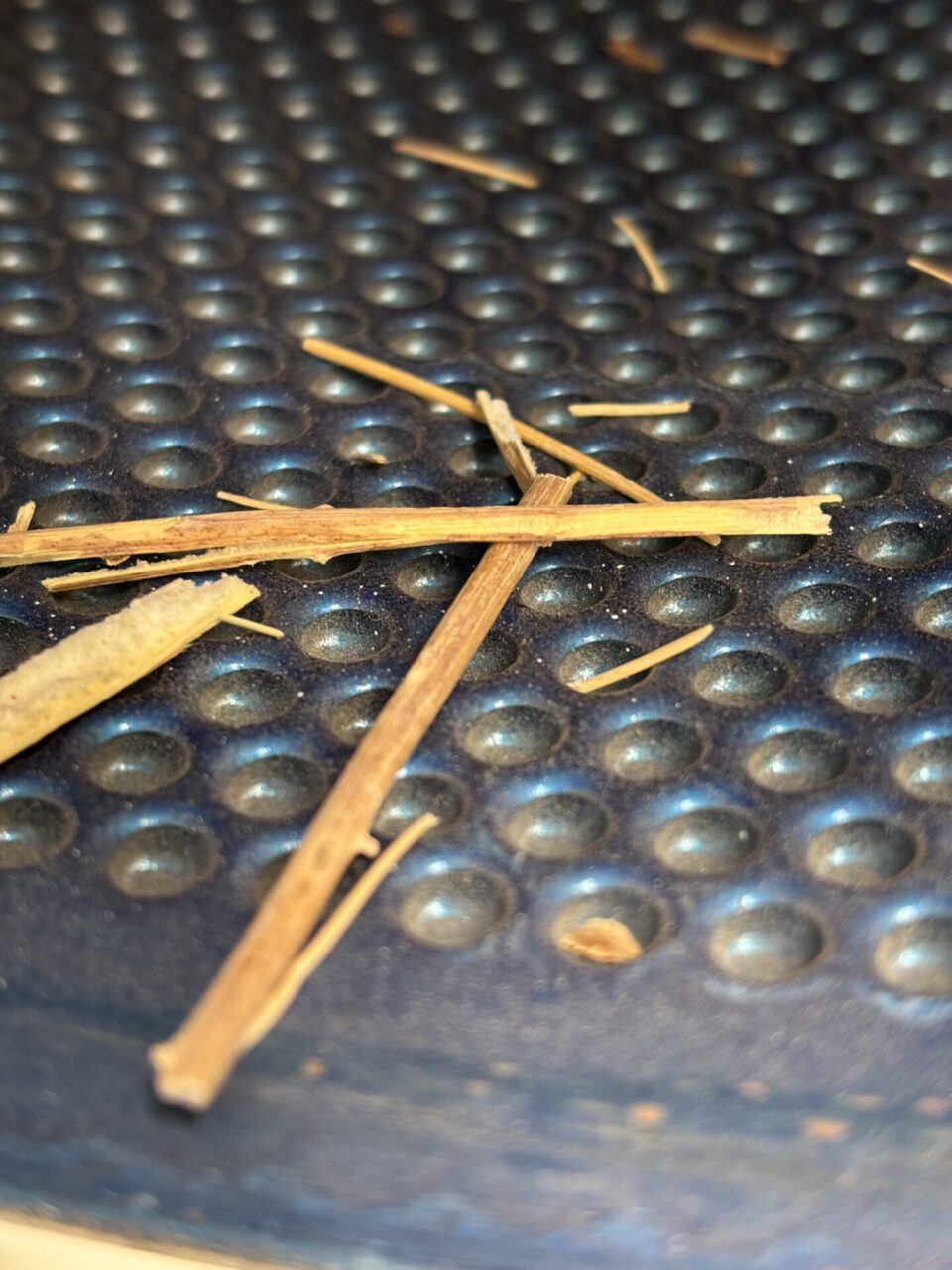

Seeds are fed from a hopper into a rotating cylindrical drum, where they are conveyed towards the discharge end. The inner surface of the drum is fitted with precision-engineered “teardrop” shaped indents. Seeds or particles that fit into these pockets are lifted as the drum rotates and, at a predetermined height, fall by gravity into an internal collection trough. This fraction is transported separately to the front of the machine, while the remaining material continues through the drum to a second outlet. In this way, an accurate separation between short and long particles is achieved (two separations).
To accommodate different seed species and separation requirements, the machine is available with interchangeable indent sizes, for example 1.90, 2.00, 2.10, 2.25 mm, and many other sizes smaller and larger.
Thanks to its continuous operating principle, the operator can fill the hopper and allow the machine to process the seed lot unattended until the run is complete, maximizing efficiency while minimizing labor.
Length grading with an indent cylinder is a proven and indispensable cleaning step in modern seed processing. Combined with our expertise and precision engineering, this laboratory machine delivers reliable, repeatable results for even the smallest and most valuable seed lots.
Specifications
