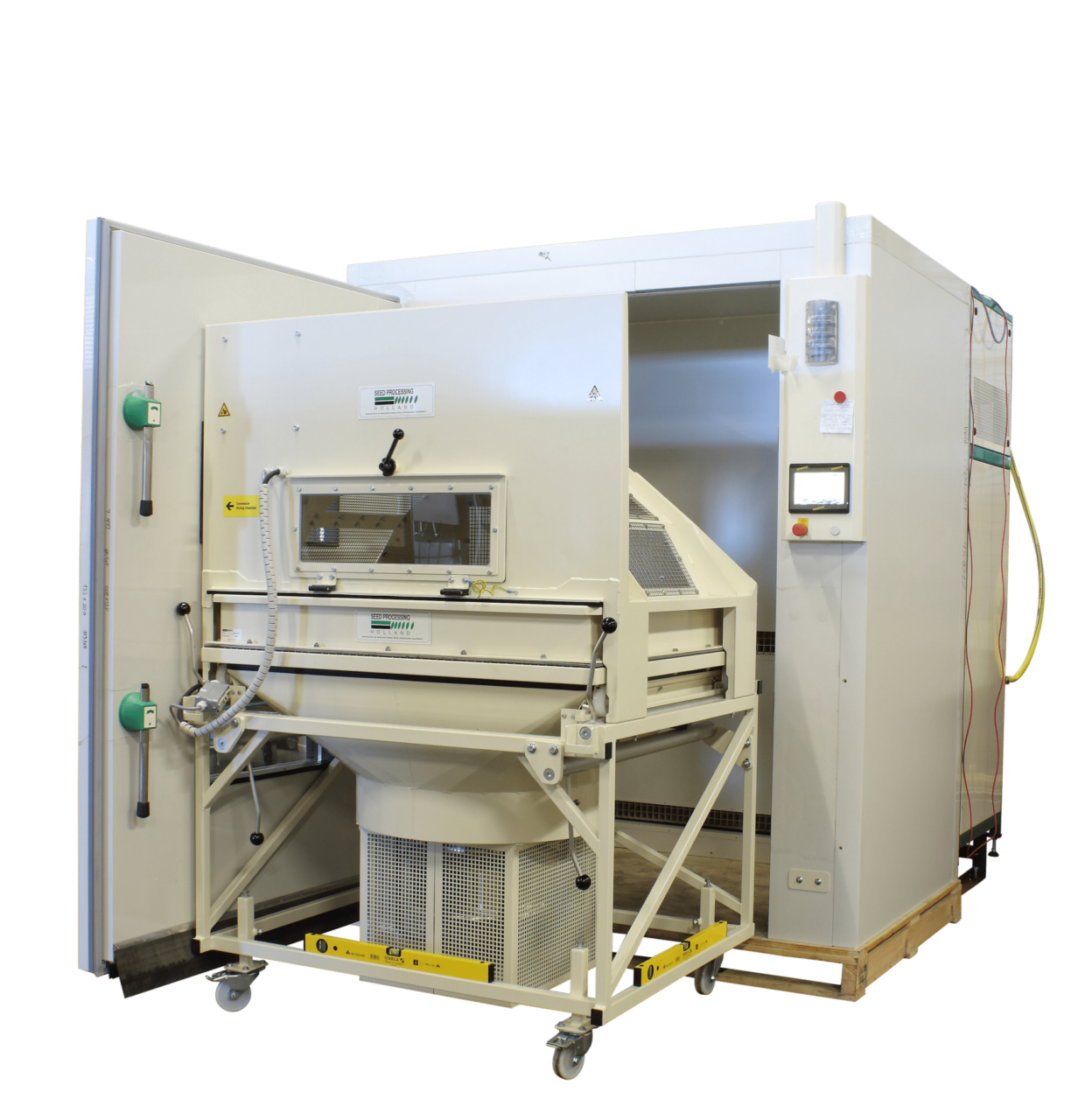

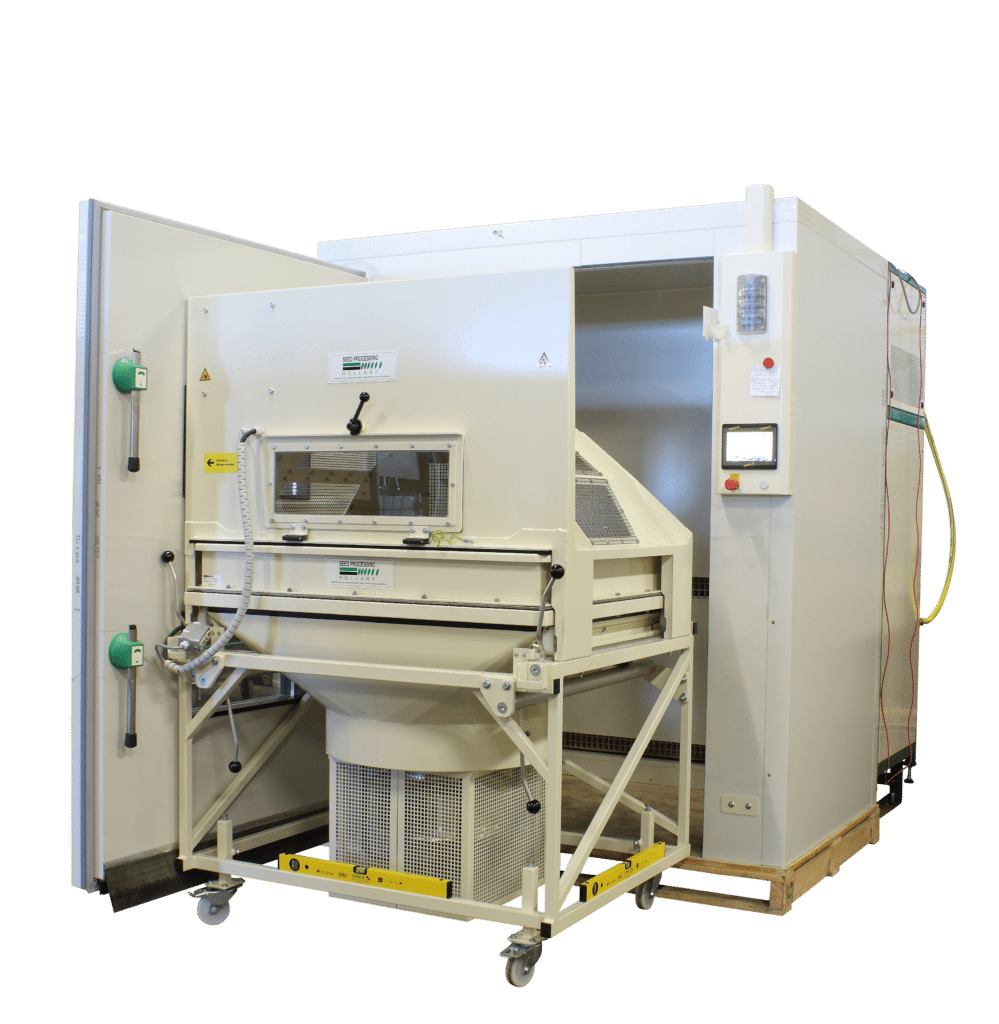

This removable cart is designed to be placed inside the seed dryer cabinet DRM-4300-01 for drying wet pellets. The system controls are integrated with the seed dryer PLC, enabling a dedicated ventilation program during operation.

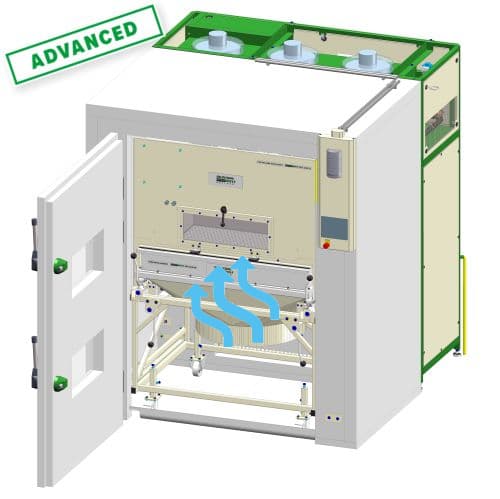

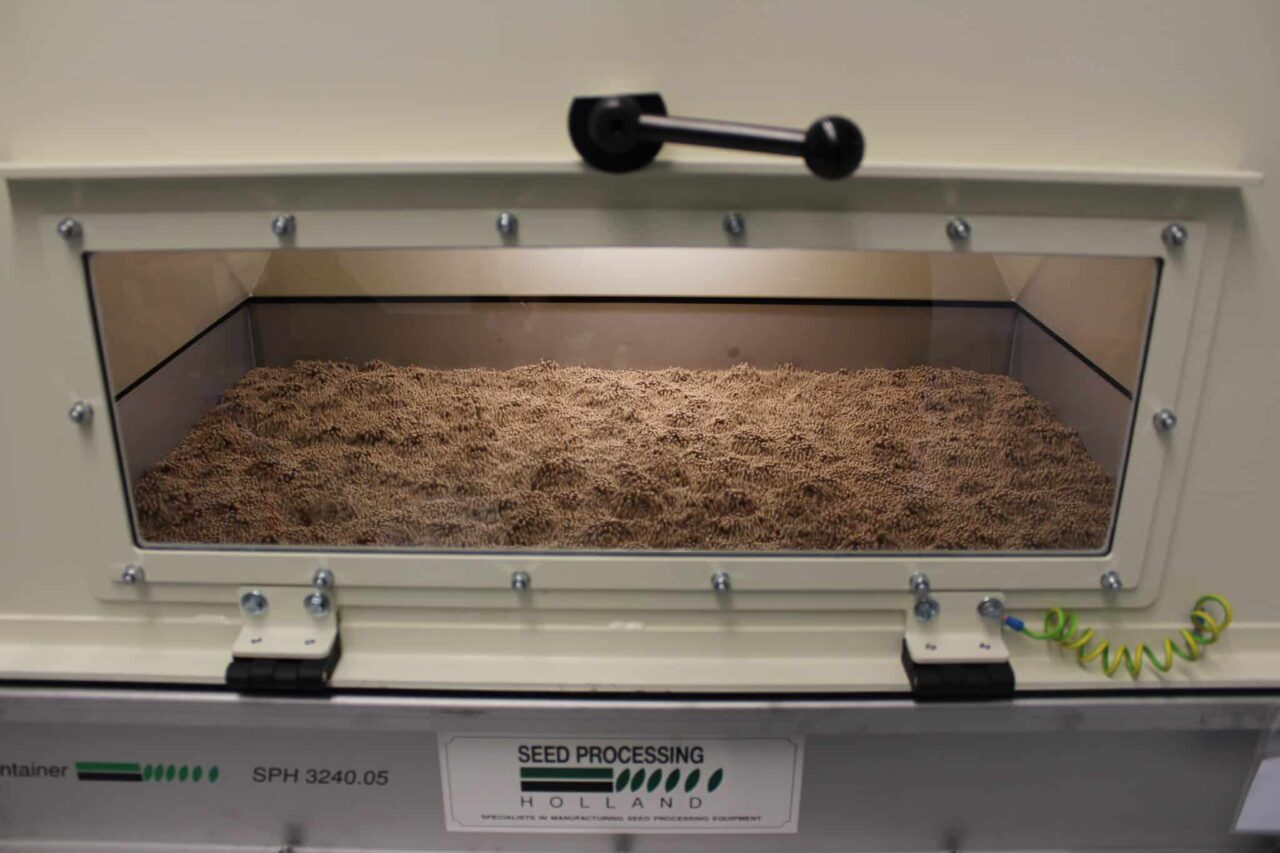

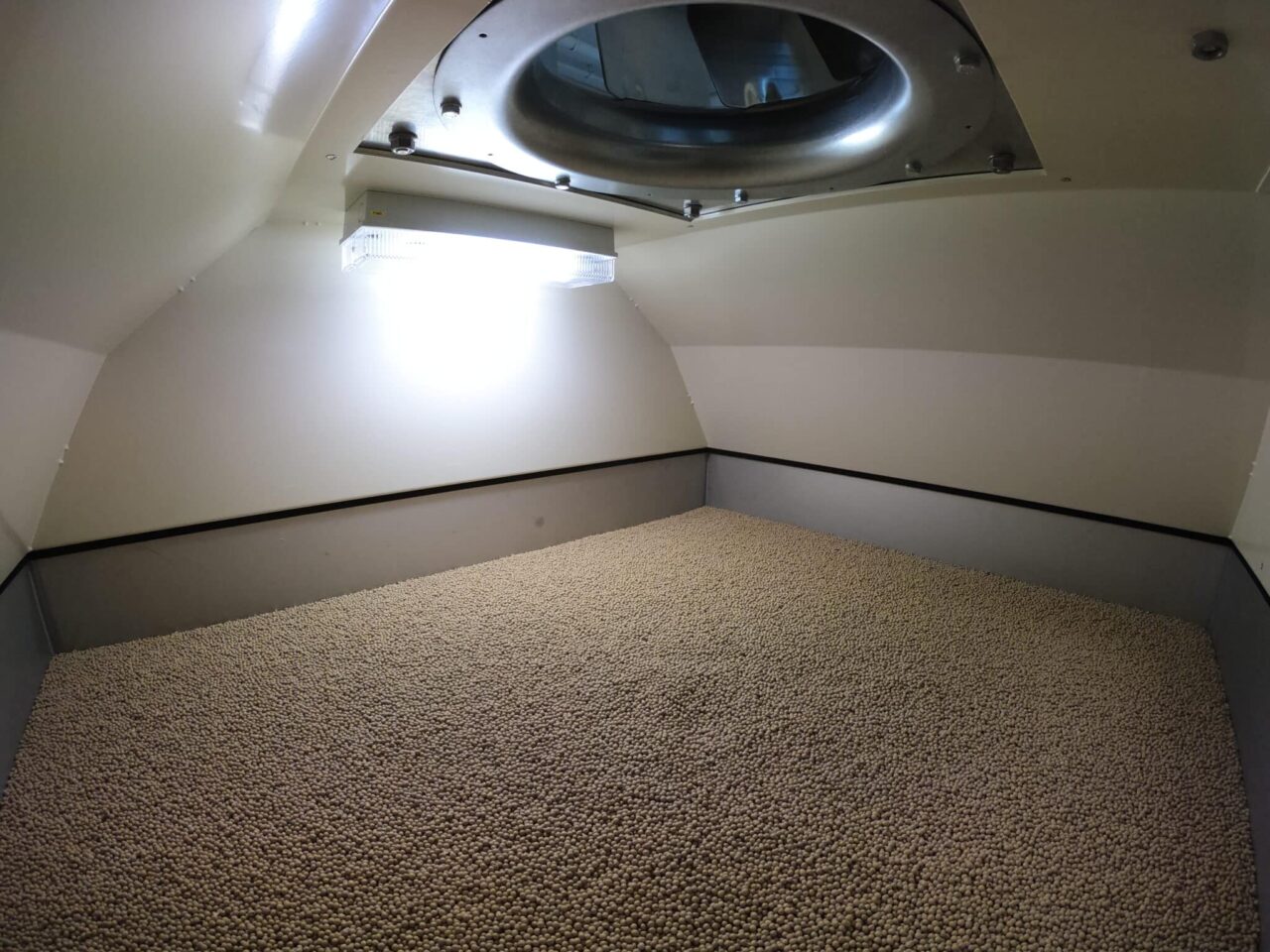

Two variable-speed fans, positioned above and below the pellet bed, generate a controlled pressure difference. This airflow causes the heavier wet pellets to become fluidized (i.e., they begin to move and “float”), ensuring that dry air passes evenly around each pellet. As a result, moisture is removed more efficiently and the overall drying process is significantly accelerated.
Using this method, we are able to dry approximately 2.5 units of lettuce seed pellets within 1.5–2 hours. As the pellets become drier, the pressure difference becomes more pronounced. The system automatically responds by reducing ventilation speed to prevent over-processing (e.g., excessive abrasion or polishing) and to minimize energy consumption.
Specifications
